Details

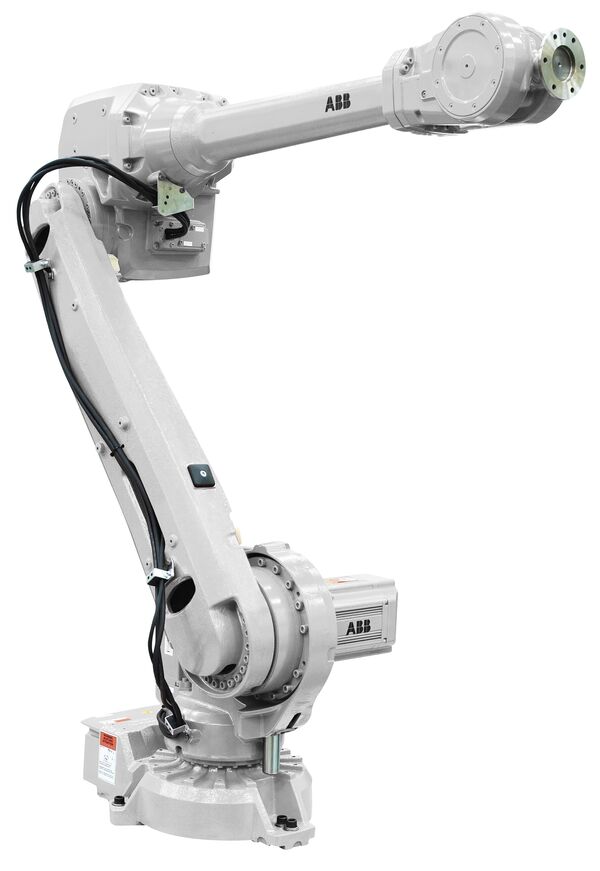

The ABB IRB 4600 – 60 IRC robot is com­pact, accu­rate, and speedy, a cut above the rest. It will quick­ly increase your pro­duc­tiv­i­ty and pro­duc­tion capac­i­ty as it com­bines a high out­put with short­er cycle times, cut­ting cycle times by up to 25%. The IRB 4600 – 60 can achieve high­est in its class speeds and accel­er­a­tion but also remain flex­i­ble with mul­ti­ple mount­ing options, such as floor, tilt­ed, semi-shelf, or invert­ed. This makes the IRB 4600 – 60 ide­al for a wide assort­ment of appli­ca­tions from arc weld­ing and cut­ting, to dis­pens­ing and assembly.

In addi­tion, the IRB 4600 IRC5 arm is incred­i­bly slen­der — allow­ing for opti­mal part acces­si­bil­i­ty and instal­la­tion flex­i­bil­i­ty. The com­pact base cov­ers a 512676 mm space; this ensures space sav­ing options, shrinks the foot­print of your man­u­fac­tur­ing cells, and allows you to place the robot clos­er to the served machines, fur­ther increas­ing your out­put and productivity.

While the stan­dard pro­tec­tion is IP67, a Foundry Plus ver­sion is also avail­able. There are addi­tion­al pro­tec­tion options avail­able such as:

  • Resis­tant paint
  • Rust pro­tect­ed mount­ing flange
  • Pro­tec­tion for molten met­al spits on non-mov­ing cables
  • Extra pro­tec­tion plates over the floor cable con­nec­tions on the foot

The IRB 4600 – 60 is paired with the advanced and intu­itive IRC5 controller.

Specs

Payload
60 kg
Reach
2050 mm
Axes
6
Repeatability
0.05 mm
Mass
435 kg
Structure
Articulated
Mounting
Floor, Inverted, Angle

Motion Speed

J1
175 °/s (3.05 rad/s)
J2
175 °/s (3.05 rad/s)
J3
+75° - 180°
J4
+400° - 400°
J5
250 °/s (4.36 rad/s)
J6
360 °/s (6.28 rad/s)

Motion Range

J1
+180° - 180°
J2
+150° - 90°
J3
+75° - 180°
J4
+400° - 400°
J5
+120° - 125°
J6
+400° - 400°
